FGSW-2624HPS(4) Planet Коммутатор 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Web Smart Ethernet Switch

PLANET FGSW-2624HPS - 24 портовый управляемый L2 PoE + Web Smart Ethernet коммутатор с двумя Gigabit TP/SFP для сетей SMB с  VoIP иIP видеонаблюдением

PLANET FGSW-2624HPS - web smart коммутатор с 24 10/100TX 802.3at PoE + портами, 220W PoE бюджет,  и двумя Gigabit TP/SFP Combo интерфейсами волоконно-оптических модулей разработан специально для сетей с расширенной сетевой инфраструктурой с VoIP и IP видеонаблюдением для малого и среднего бизнеса и рабочих групп.

FGSW-2624HPS  может работать с одним 32-канальным сетевым видеорегистратором для выполнения комплексного мониторинга безопасности с 24 IP камерами через один гигабитный порт TP/SFP Combo, поддерживая высокоскоростную передачу видео изображений.

Используя интеллектуальный коммутатор FGSW-2624HPS можно легко построить  централизованно управляемую систему IP-видеонаблюдения и мониторинга с повышенной гибкостью и невысокой себестоимостью для предприятий.

FGSW-2624HPS оснащенный 2 дополнительных Gigabit TP/SFP комбо-интерфейсами с поддержекой  10/100/1000BASE-T RJ45  может соединиться с сетевыми устройствами наблюдения, таких как NVR, Video Streaming Server или NAS. Через эти  оптоволоконные SFP слоты он также может соединяться через 1000BASE-SX/LX SFP (Small Form-factor Pluggable) волоконно-оптические транссиверы с магистральным коммутатором и центром мониторинга на большом расстоянии от 550 м до 2 км (многомодовое оптоволокно до 10/20/30/40/50/70/120 км (одномодовое оптоволокно или WDM)

Cost-effective PoE+ Managed Switch for Small and Medium Networking

Particularly designed for the growing popular IP surveillance applications, PLANET FGSW-2624HPS / FGSW-2624HPS4 802.3at PoE web smart switch is a surveillance switch with the central management of remote power control and IP camera monitoring. The FGSW-2624HPS / FGSW-2624HPS4 provides PoE functions along with 24 10/100BASE-TX ports featuring 30-watt 802.3at PoE+ with RJ45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos. With a total power budget of up to 220 watts and 420 watts for different kinds of PoE applications, respectively, the FGSW-2624HPS and FGSW-2624HPS4 provide a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

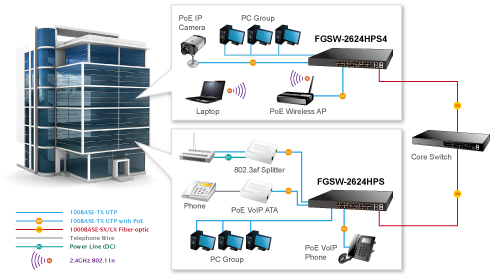

Centralized Power Management for Security and Public Service PoE Applications

To fulfill the needs of the high power consumption of PoE network applications, the FGSW-2624HPS / FGSW-2624HPS4 features the standard IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 30 watts of power output and data per port over one cat5E/6 Ethernet cable. It is designed specifically to meet the demand of the high power consumption of network PDs (powered devices) such as IR, PTZ, speed dome cameras; and even box-type IP cameras with built-in fan and heater. Compliant with both 802.3at and 802.3af standards, the series allows more flexibility in power requirement for a variety of PDs, making installation costs affordable.

Physical Port

• 24-port 10/100BASE-TX RJ45 copper with 24-port IEEE 802.3at/af PoE injector
• 2-port 10/100/1000BASE-T Gigabit RJ45 copper
• 2 1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-26
• Reset button for system management

Power over Ethernet

• Complies with IEEE 802.3at High Power over Ethernet End-span PSE
• Complies with IEEE 802.3af Power over Ethernet End-span PSE
• Up to 24 IEEE 802.3at / 802.3af devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Detects powered device (PD) automatically
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE Power Usage
• PoE Management

- Per port PoE function enable/disable

- PoE Port Power feeding priority

- Per PoE port power limit

- PD classification detection

- PoE power sequential

Layer 2 Features

• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Supports broadcast storm control
• Supports VLAN

- IEEE 802.1Q tag-based VLAN, up to 32 VLANs groups, out of 4095 VLAN IDs

- Port-based VLAN, up to 26 VLAN groups

- MTU VLAN (Multi-tenant Unit VLAN)

• Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

• Supports Spanning Tree Protocol

- STP, IEEE 802.1d Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Provides port mirror (Many-to-1)

Quality of Service

• 2 priority queues on all switch ports
• Traffic classification

- Port-based priority

- IEEE 802.1p-based priority

- IP TOS / DSCP-based priority

- TCP / UDP port-based QoS

• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IGMP Snooping v1 and v2 (excluding IGMP Query feature)

Security

• Physical port to MAC address binding
• TCP/UDP port number filter: Forwarding or discarding typical network applications
• Port mirroring to monitor the incoming or outgoing traffic on a particular port

Management

• Switch Management Interfaces

- Web switch management

- SNMP v1 switch management

• Firmware upload/download via https
• Hardware reset button for system reboot or resetting to factory default
