GS-5220-24P4X(R) Planet Коммутатор L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch / 400W

GS-5220-24P4X(R) Planet Коммутатор L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch / 400W
126066.00 ₽
Производитель : Planet
Количество портов : 24

Коммутатор Planet GS-5220-24P4X, 24-Port 10/100/1000T 802.3at PoE with 4 shared SFP + 4-Port 10G SFP+

Physical Port

  • 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector
  • 4 100/1000BASE-X mini-GBIC/SFP combo interface with Port-21 to Port-24
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • 1 RJ45 console interface for basic management and setup

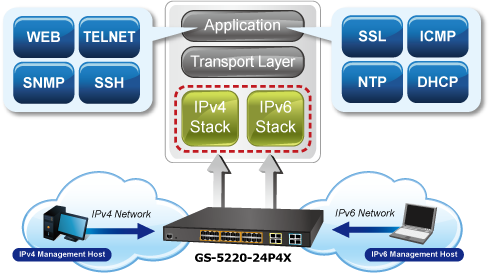

IPv6 Routing and 10G Ethernet Switch Solutions with PoE Plus for SMBs

PLANET GS-5220-24P4X and GS-5220-24P4XR Layer 2+ Managed PoE Switches support both IPv4 and IPv6 protocols, and hardware Layer 3 static routing capability. They comply with IEEE 802.3at Power over Ethernet Plus (PoE+), equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports, 4 shared Gigabit SFP slots and 4 10G SFP+ uplink slots. Their 24 Gigabit Ethernet ports integrated with 802.3at PoE+ injector function on all ports.

The GS-5220-24P4X series can handle extremely large amounts of data in a secure topology linking to deploying Power over Ethernet networks, data center/service provider backbone or high capacity servers. They can work with a 10Gbps SFP+ server adapter to help SMBs build the 10Gbps Ethernet network providing 10Gbps NAS (Network Attached Storage) or heavy transmission of video streaming service.

Redundant AC/DC Power Supply to Ensure Continuous Operation

The GS-5220-24P4XR is particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-24P4XR is able to act as a telecom-level device that can be located in the electronic room.

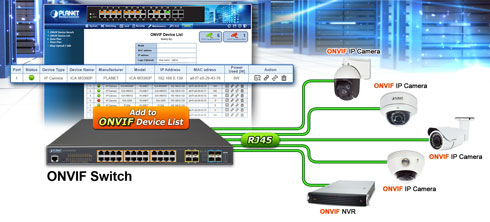

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From the GS-5220-24P4X and GS-5220-24P4XR GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images into switch and allows for deploying location of surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and also allows PoE reboot control from GUI.

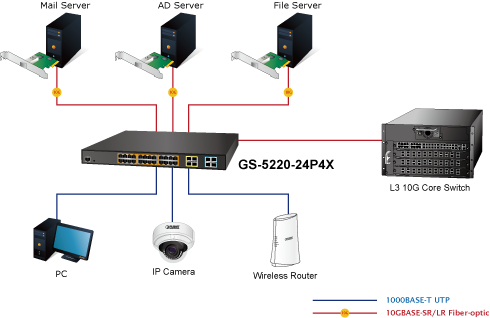

Excellent 10Gbps High Bandwidth Solution to Core Network

The GS-5220-24P4X series performs 128Gbps non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the GS-5220-24P4X series provides the uplink to the backbone network through the 10G Ethernet SR/LR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

Physical Port

  • 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector
  • 4 100/1000BASE-X mini-GBIC/SFP combo interface with Port-21 to Port-24
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • 1 RJ45 console interface for basic management and setup

Power over Ethernet

  • Complies with IEEE 802.3at PoE+/end-span PSE
  • Up to 24 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100M
  • PoE Management

- Total PoE power budget control

- Per port PoE function enable/disable

- PoE port power feeding priority

- Per PoE port power limit

- PD classification detection

- PD alive check

- PoE schedule

- PD scheduled power recycling

Layer 2 Features

  • IEEE 802.3x pause frame flow control (full-duplex)
  • Store-and-forward architecture and “runt/CRC” filtering
  • Storm control support

- Broadcast

- Unicast

- Multicast

  • VLAN

- IEEE 802.1Q tagged VLAN

- Up to 256 VLAN groups, out of 4095 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- Voice VLAN

  • Supports Spanning Tree Protocol

- IEEE 802.1D Spanning Tree Protocol

- IEEE 802.1w Rapid Spanning Tree Protocol

- IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

  • Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

- Maximum 10 trunk groups, up to 16 ports per trunk group

- Up to 32Gbps bandwidth in duplex mode

  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops

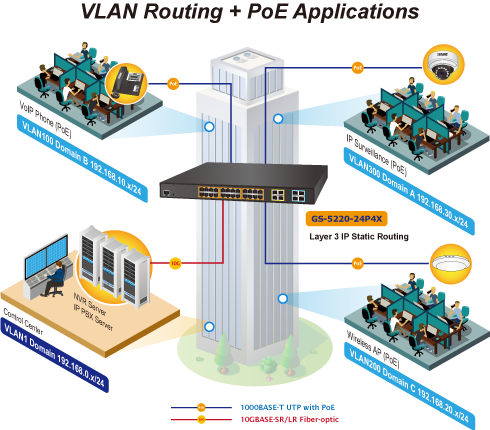

Layer 3 IP Routing Features

  • Supports a maximum of 8 static routes and route summarization
  • Supports a maximum of 32 routing entries

Quality of Service

  • 8 priority queues on all switch ports
  • Traffic classification

- IEEE 802.1p CoS

- IP TOS/DSCP/IP precedence

- IP TCP/UDP port number

- Typical network application

  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing on the switch port
  • DSCP remarking

Multicast

  • Supports IGMP snooping v1, v2 and v3
  • Support MLD snooping v1 and v2
  • Supports querier mode
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • MVR (Multicast VLAN Registration)

Security

  • IEEE 802.1x port-based/MAC-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • RADIUS/TACACS+ customers access authentication
  • IP-based access control List (ACL)
  • MAC-based access control list
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Management

  • Switch management interfaces

- Console and Telnet command line interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH/SSL secure access

  • Four RMON groups (history, statistics, alarms and events)
  • IPv6 address, NTP and DNS management
  • Built-in Trivial File transfer Protocol (TFTP) client
  • DHCP client
  • Firmware upload/download via https/TFTP
  • DHCP Relay
  • DHCP Option 82
  • Customer Privilege levels control
  • NTP (network time protocol)
  • Link Layer Discovery Protocol (LLDP)
  • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • Reset button for system reboot or reset to factory default

Redundant Power System (GS-5220-24P4XR)

  • Redundant 100~240V AC/36~60V DC dual power
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
