GSW-1222VUP Planet Коммутатор 8-Port 10/100/1000T Ultra PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Gigabit Ethernet Switch with LCD PoE Monitor / 380W

GSW-1222VUP Planet Коммутатор 8-Port 10/100/1000T Ultra PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Gigabit Ethernet Switch with LCD PoE Monitor / 380W
26603.00 ₽
Производитель : Planet
Количество портов : 8

Коммутатор GSW-1222VUP, 8 портов 10/100/1000T с Ultra PoE, 2 порта 10/100/1000T, 2 порта 1000X SFP, LCD-дисплей, бюджет PoE 380 Вт, питание 100~240V AC, установка в стойку, 0С~50C



Металлический корпус


корпусные вентиляторы

Возможности монтажа

установка в стойку

Общее количество портов Ethernet


Порты Gigabit Ethernet


Порты Gigabit Ethernet с функцией PoE


Порты SFP

2 x 1000BASE-X SFP

Бюджет PoE

380 Вт

Мощность на порт PoE

6 x 60 Вт, 8 x 30 Вт

Пропускная способность

24 Гбит/с

Тип коммутатора

Store and Forward

Таблица адресов

8 К

Управление потоком

IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex

Тип источника питания


Диапазон входного напряжения

100~240 AC В

Дополнительные функции

LCD дисплей

Потребляемая мощность

40 Вт

Рабочая температура, град. C

0 ~ 50

Относительная влажность, %

5 ~ 90

Габаритные размеры (ДxШxВ), мм

440 x 233 x 44

Вес, кг.


Ready to Deploy Next Generation Power over Ethernet

PLANET has recently announced a complete 60W Ultra PoE Solution, such as 60W Ultra PoE Injector/Splitter, 60W Ultra PoE Extender and 60W Ultra PoE Injector Hub. One of them in the PLANET ultra PoE product series family is the GSW-1222VUP.

A new family member of PLANET 60W Ultra PoE Solution, the GSW-1222VUP is an 8-port 10/100/1000T Ultra PoE + 2-port 10/100/1000T + 2-port 1000X SFP Gigabit Ethernet Switch with a total of 380 watts of PoE budget. One special feature that this unit has is the LCD display for PoE work status monitoring. Each PoE port can deliver up to 60-watt power over Cat.5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W or standard 802.3at compatible powered device (PD) for different kinds of PoE applications, respectively.

The GSW-1222VUP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

The GSW-1222VUP Ultra PoE solution adopts the IEEE 802.3at PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the GSW-1222VUP is able to deliver per port 60watts of power to each remote PoE compliant powered device.

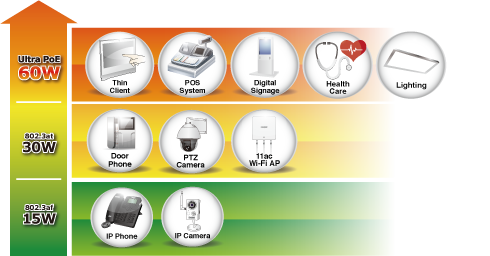

The amount of power capability that the GSW-1222VUP possesses doubles that of the conventional 802.3at PoE, thus making an ideal solution to meeting the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome
  • Any network device that needs higher PoE power to work normally
  • Thin-client
  • AIO (all-in-one) touch PC, point of sale (POS) and information kiosks
  • Remote digital signage display


Ultra PoE Injector and Ultra PoE Splitter Solutions

PLANET GSW-1222VUP can easily build an Ultra PoE networking solution on the cyber security system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GSW-1222VUP and POE-171S Ultra PoE Splitter operate as a pair to provide the easiest way to power your Ethernet devices which need high power input.

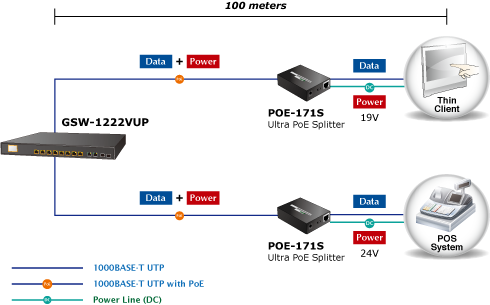

Each PoE port of the GSW-1222VUP can deliver up to 60-watt power to enable to transmit both data and power to POE-171S. The POE-171S will then separate digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.

Gigabit Ultra PoE and PoE+ Network Deployment

The GSW-1222VUP conveniently supplies power to your Ethernet devices such as IP camera on the ceiling and wireless access point installed on the top of the building. With eight 10/100/1000T Ultra PoE in-line power interfaces, the GSW-1222VUP supports full 54V DC power for any remote 60W and IEEE 802.3af/IEEE 802.3at powered device (PD).

To control the power system of your networking devices, the GSW-1222VUP can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The GSW-1222VUP can be directly connected to any third-party IEEE 802.3af/802.3at compliant devices installed within 100 meters. Furthermore, the GSW-1222VUP can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.

Physical Port

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
  • 2 10/100/1000BASE-T TP ports
  • 2 1000BASE-X mini-GBIC SFP interfaces

Power over Ethernet

  • Ultra Power over Ethernet end-span/mid-span PSE
  • Up to 60 watts of power on 4-pair UTP
  • Backward compatible with IEEE 802.3at/af PD device
  • Up to 8 ports of IEEE 802.3af/IEEE 802.3at/Ultra PoE devices powered
  • 54V DC, 60-watt PoE power output at maximum on each port
  • 380-watt PoE budget
  • Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m


  • 19-inch size, 1U height, rack mounting
  • LED indicators for system power, per port PoE ready and PoE activity, speed Link/Act

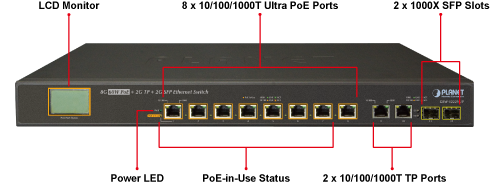

  • LCD monitor for system status and PoE usage status display
  • 3 silent smart fans designed to provide stable and efficient power performance

Hardware Specifications

PoE Copper Ports

10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port

SFP/mini-GBIC Slots

2 x 1000BASE-X SFP interface

PoE Injector Ports

8 ports with Ultra PoE/802.3at/af PoE injector function with Port-1 to Port-8

Switch Architecture


Switch Fabric


Switch Throughput@64 bytes

17.8 mpps@64 bytes

MAC Address Table

8K entries

Jumbo Packet Size

10K bytes

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex



Power (Green)

Ultra PoE 10/100/1000BASE-T RJ45 Interfaces (port 1 to port 8):

1000Mbps LNK/ACT (Green)

10/100Mbps LNK/ACT (Orange)

PoE-in-Use (Orange)

10/100/1000BASE-T RJ45 Interfaces (port 9 to port 10):

1000Mbps LNK/ACT (Green)

10/100Mbps LNK/ACT (Orange)

1000BASE-X SFP Interfaces (port 11 to port 12):

1000Mbps LNK/ACT (Green)

LCD Monitor (W x D)

39.5mm x 24.8mm
System status and PoE usage port status

Dimensions (W x D x H)

440 x 233 x 44 mm, 1U height





Power Requirements

100~240V AC, 50/60Hz, 6A max.

Power Consumption/Dissipation

Max. 420 watts/1433 BTU


Smart fan x 3
(Fans will activate once the PoE budget reaches 126 watts)

ESD Protection

Contact discharge of ±4KV DC
Air discharge of ±6KV DC

Surge Immunity


Power over Ethernet

PoE Standard

IEEE 802.3af/802.3at/Ultra PoE PSE

PoE Power Supply Type

End-span + Mid-span

PoE Power Output

Per port 54VDC, 600mA. max. 60 watts (Ultra PoE)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)

Power Pin Assignment

Ultra PoE: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
End-span: 1/2 (+), 3/6 (-)
Mid-span: 4/5 (+), 7/8 (-)

PoE Power Budget

380 watts (max.)

PoE Ability PD @ 15 watts

8 units

PoE Ability PD @ 30 watts

8 units

PoE Ability PD @ 60 watts

6 units

Standards Conformance

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus



Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)


Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
