UPOE-2400G Planet Инжектор 24-Port Gigabit 60W Ultra PoE Managed Injector Hub (800W)

PLANET Ultra PoE Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly upgrade an existing network infrastructure to Ultra Power over Ethernet network system without replacing the existing Ethernet Switch. The UPOE-2400G is a high-density, rack-mountable managed Ultra PoE injector hub featuring PLANET intelligent PoE functions through web user interface for remote management.

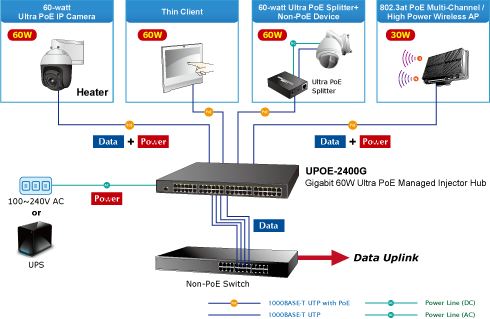

Quick and Easy PoE Network Deployment

The UPOE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the UPOE-2400G, of which the 24 ports are on the lower stack functioned as "Data input" while the other 24 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the UPOE-2400G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

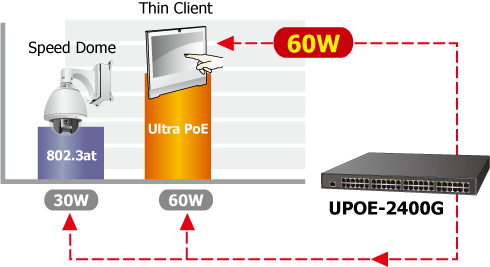

802.3bt Ready -- 60 Watts of Power over 4-Pair UTP System
The UPOE-2400G Ultra PoE solution adopts the IEEE 802.3at/af PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the UPOE-2400G is able to deliver per port up to 60 watts of power to each remote PoE compliant powered device. It possesses double amount of power capability than the conventional 802.3at PoE and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:
　■ PoE PTZ speed dome
　■ Any network device that needs higher PoE power to work normally
　■ Thin-client
　■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks
　■ Remote digital signage display

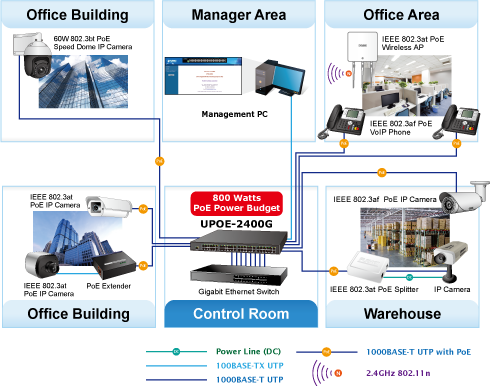

Gigabit Ultra PoE and PoE+ Network Deployment

The UPOE-2400G provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 24 10/100/1000BASE-T Gigabit Ethernet ports, the UPOE-2400G supports full 54V DC power for any remote 60W and IEEE 802.3af/IEEE 802.3at powered device (PD).

To control the power system of your networking devices, the UPOE-2400G can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The Ultra PoE hub can be directly connected to any third-party IEEE 802.3af/802.3at compliant devices installed within 100 meters. Furthermore, with PLANET PoE Extender, the UPOE-2400G can be deployed at a distance longer than the standard one of 100 meters.

Interface

• Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards
• 48-port RJ45

- 24-port 10/100/1000Mbps “Data input”

- 24-port 10/100/1000Mbps “Data + Power output”

• One 10/100/1000BASE-T management port

Power over Ethernet

• Ultra Power over Ethernet end-span/mid-span PSE
• Up to 60 watts of power on 4-pair UTP
• Backward compatible with IEEE 802.3at/af PD device
• Maximum of 54V DC, 60-watt PoE power output on each port
• 800-watt PoE budget
• Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

PoE Management

• Per port PoE power schedule
• PoE function enable/disable
• Per port PoE function enable/disable
• PoE port power feeding priority
• PD classification detection
• Over temperature protection
• PD alive check
• PoE schedule

Management

• Web interface for remote management
• Supports Network Time Protocol (NTP)
• Firmware upgrade through Web interface
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• SNMP trap for alarm notification of events
• System log/remote syslog

Hardware

• 19-inch rack mountable; 1U height
• Reset button for resetting to default setting and system reboot
• LED indicators for PoE ready and PoE activity
• LED indicators for power alert and fan alert
• LED indicators for PoE power usage status (watts)
• FCC Part 15 Class A, CE
